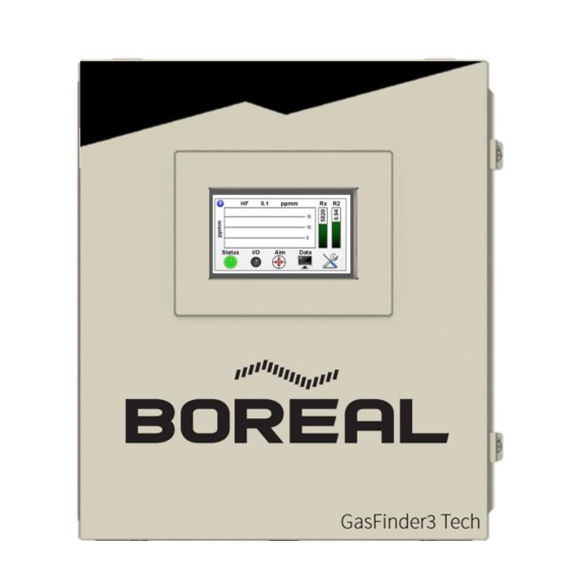

Boreal GasFinder3-OP

The GasFinder3-OP is a field deployable Open-Path Tunable Diode Laser (OP-TDL) based gas analyzer system that is primarily used for:

  • Leak Detection – provides immediate and unambiguous detection of fugitive gas releases in industrial safety applications
  • Ambient Monitoring – Continuously monitors gas concentrations over open area and/or point sources for environmental monitoring applications

This technology is also most commonly referred to as Open Path Gas Detection (OPGD) or Line of Sight (LOS).

This particular technology is ideal for detecting or monitoring for a number of different Toxic, Combustible, Hazardous, or Greenhouse Gases.

Boreal GASFINDER3-OP

Specs

Power Supply
12 VDC Alligator Clamp Battery Cables adn a 120-220 VAC Power Supply
Dynamic Range
5 orders of magnitude
Accuracy
+/-2% of reading
Data Output
3x 4-20mA & Dry Contact Relays per channel
Dimensions
260 x 200 x160mm
Eye Safety
Class 1 AEL under IEC 60825-1

Features

  • All weather field deployable analyzer
  • Long life span and minimal maintenance
  • intuitive data collection and interpretation
  • Real-time graphical display
  • No inherent calibration
  • Large spatial resolution
  • Minimal maintenance and intervention
